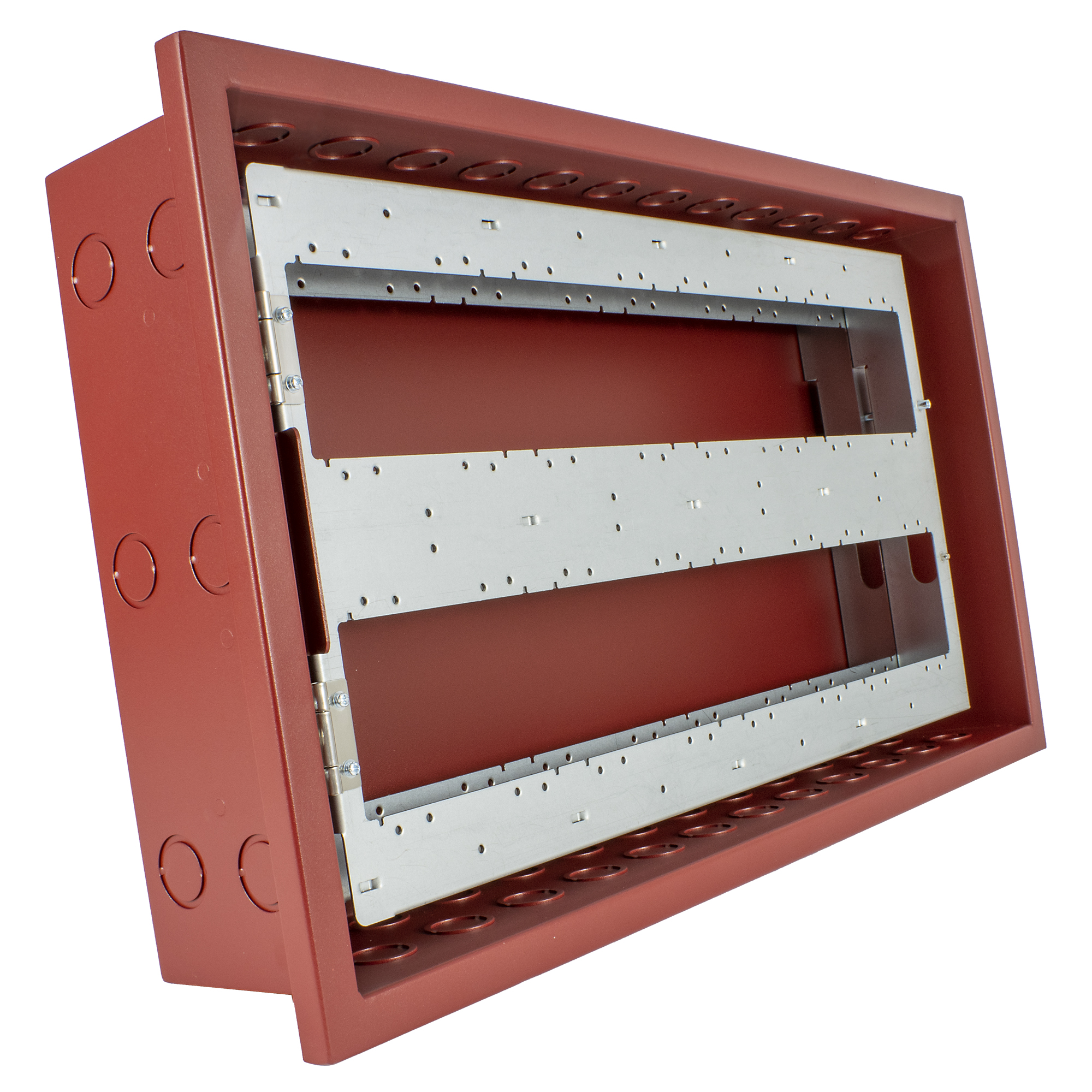

FireWatcher 434MODULE BOX

• 2 mounting plates on hinges

• Accommodates up to 16 regular modules per box

• Accommodates up to 64 mini modules per box

• Integrated flange for semi-flush installation

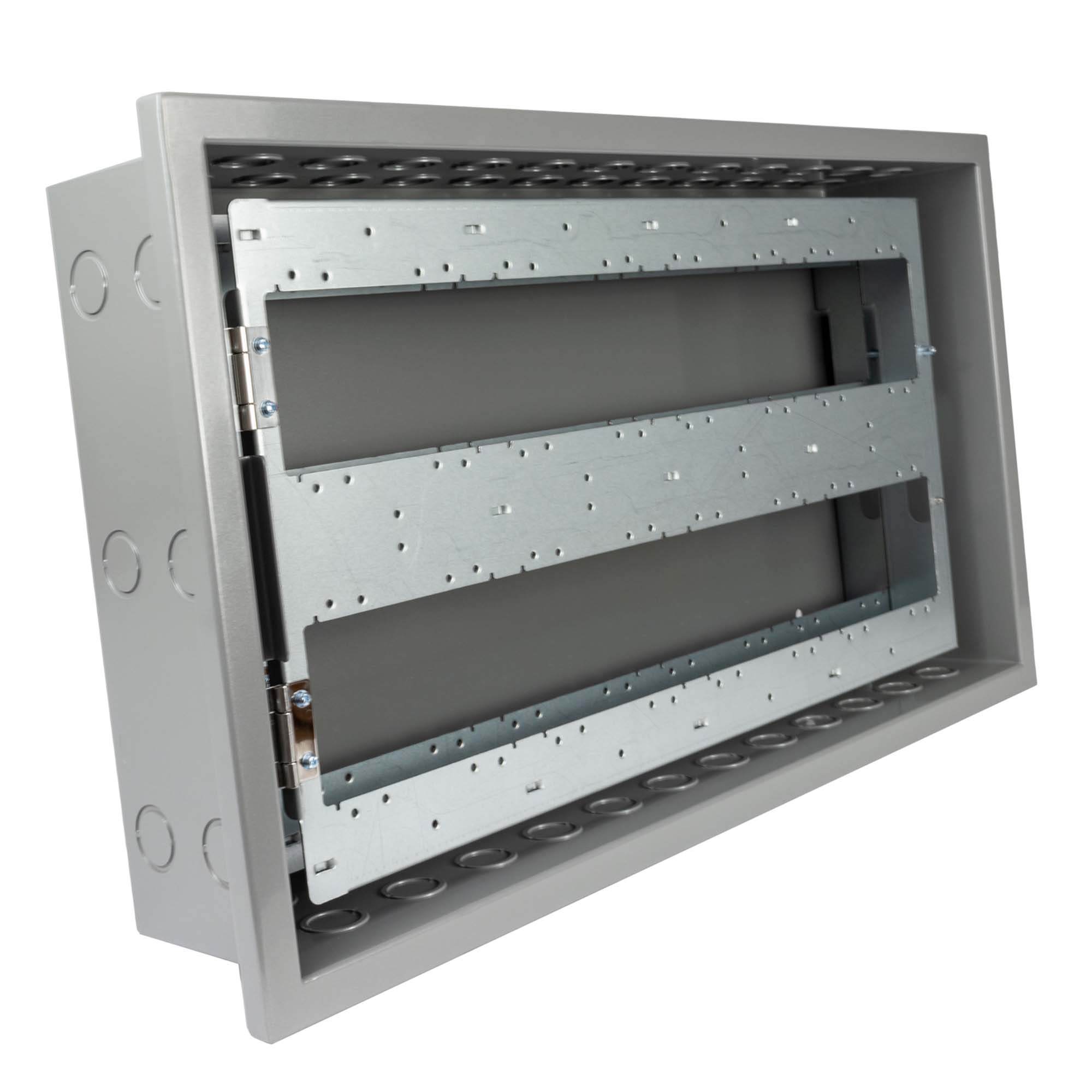

FireWatcher 435MODULE BOX

• 2 mounting plates on hinges

• Accommodates up to 8 regular modules per box

• Accommodates up to 32 mini modules per box

• Integrated flange for semi-flush installation

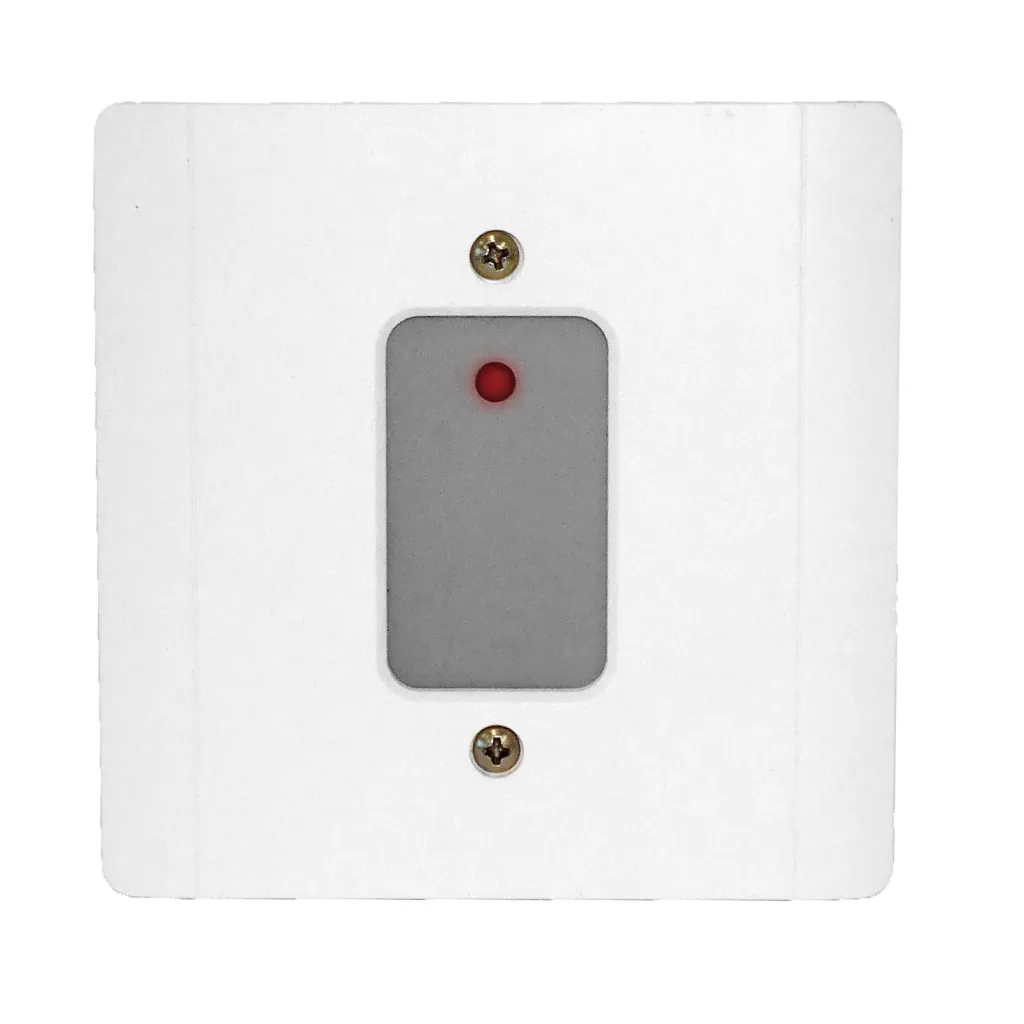

FireWatcher 811INPUT MODULE

• Input module that monitors a single dry contact

• UL/ULC listed device according to UL864 and ULCS527 for fire protective signaling systems for indoor use

• The field circuit is monitored for open line faults and ground faults and the contact must be wired with an end of line resistor

FireWatcher 811MMINI-INPUT MODULE

• Input module that monitors a single dry contact

• UL/ULC listed device according to UL864 and ULC-S527 for fire protective signaling systems for indoor use

• The field circuit is monitored for open line faults and ground faults and the contact must be wired with an end of line resistor

FireWatcher 812DUAL INPUT MODULE

• Internal electronic address

• Compatible with EOLR 10K Ohms (FW421)

• White Surface box available as an option (FW800/801)

• 4 types of input contact

• 2 Status LED indicators

• Supports two Class B input circuits

FireWatcher 821I/O MODULE

• Input-Output module

• UL / ULC listed device according to UL864 and ULC-S527 for fire protective signaling systems for indoor use

• Provides one 24VDC output and in addition monitoring for one feedback input contact

FireWatcher 831RELAY MODULE

• UL / ULC listed product according to UL864 and ULC-S527 for fire protective signaling systems for indoor use

• Provides two control relay outputs which will be activated simultaneously

FireWatcher 841RELAY CONTROL MODULE

• 2 Form C Dry Contact (30VDC, 2A)

• Internal electronic address

• White surface box available as an option (FW800/801)

• Status LED indicator

• It is a UL listed product according to UL864 and ULC-S527

FireWatcher 851ISOLATOR MODULE

• The isolation module isolates the short point on the signaling line circuit (SLC)

• The internal relay will be triggered to cut down the line power where the short trouble is detected

FireWatcher 859IN-SUITE ISOLATOR MODULE

• Up to two Class A/B outputs

• Supervised and isolated outputs

• 200ma per output

• White surface box available as an option (FW800/801)

• No LED indicator

FireWatcher 951SYNC MODULE

• Sync Module is a device designed with FW961/FW971/FW981 Horn and/or Strobe

• Built-in synchronization circuit to synchronize multiple FW961s in a complete fire alarm system

• Up to 64 Notification Appliance Circuits (NAC), networked, stand alone or interfacing with the FW951
